Series 3 UPS Eaton 3105
• Easy to install, compact design • User-replaceable batteries • Start-on-battery capability • Audible alarms •Eight total outlets-4 battery back-up; 4 surge protected only •Dataline protection for "backdoor" surges •USB port and cables standard	350-700VA
Series 5 UPS Eaton 5110
• Easy to install, compact design • User-replaceable batteries • Start-on-battery capability • Audible alarms •Eight total outlets-4 battery back-up; 4 surge protected only •Dataline protection for "backdoor" surges •USB port and cables standard • Automatic Voltage Regulation (AVR)	500-1500VA
Eaton 5115
• Exclusive ABM^® technology optimizes battery life and recharge time • Ideal protection for PCs, workstations, small office equipment • Rackmount and tower models • USB and serial communications ports	500-1500VA
Eaton 5125
• Exclusive ABM^® technology optimizes battery life and recharge time • Ideal protection for PCs, workstations, telco/network equipment • Rackmount/Tower (2U and 3U) and tower models • Optional Extended Battery Modules (EBM) for additional runtime • Individual load segment control maximizes runtime • Support for Connect-UPS/SNMP Card	1000-2200VA

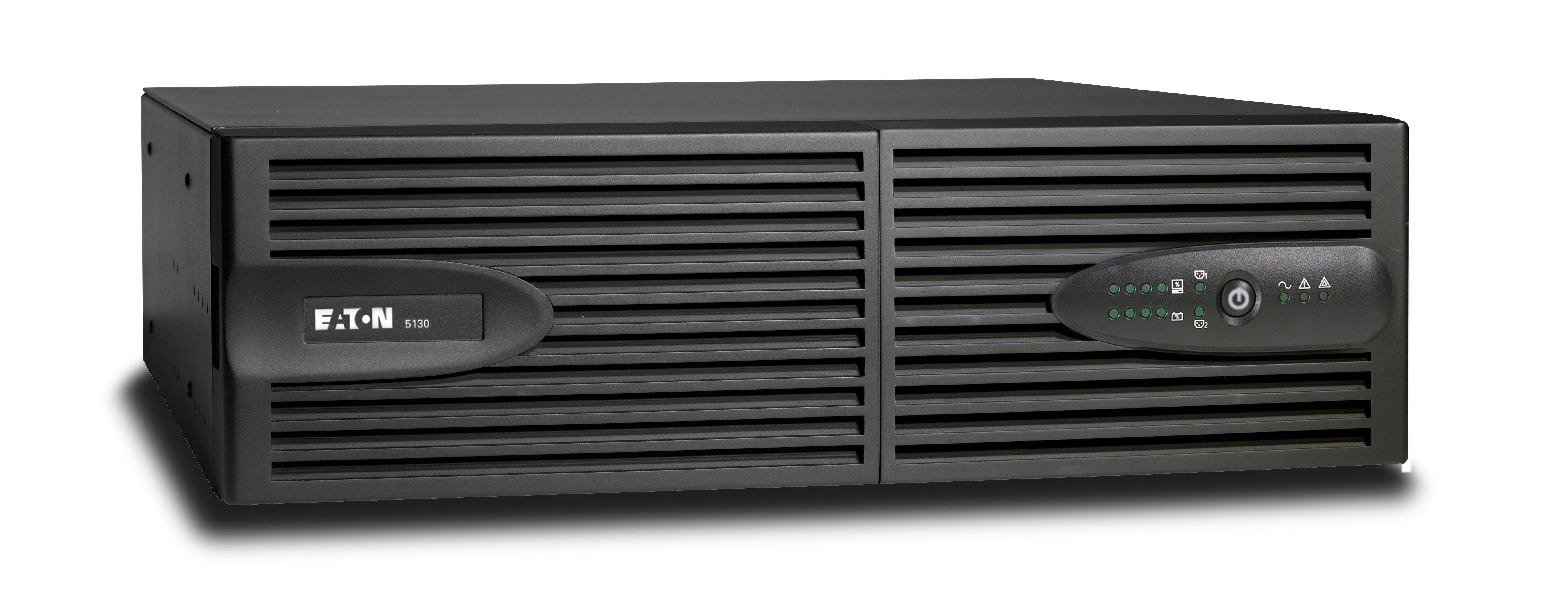

Eaton 5130
• Exclusive ABM^® technology optimizes battery life and recharge time • Ideal protection for PCs, workstations, telco/network equipment • Rackmount/Tower (2U and 3U) and tower models • Optional Extended Battery Modules (EBM) for additional runtime • Individual load segment control maximizes runtime • Support for Connect-UPS/SNMP Card	1250-3000VA

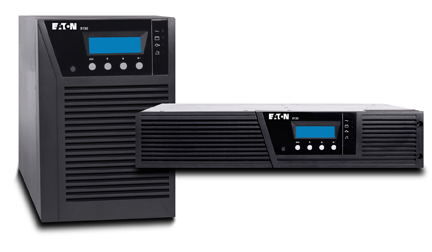

Series 9 UPS Eaton 9130 Tower and Rackmount
• True online double conversion for maximum reliability • Exclusive ABM^® technology optimizes battery life and recharge time • Optional EBMs to prolong runtimes • Individual load segment control • Ideal protection for networks, servers, telco and other critical equipment	700-3000VA

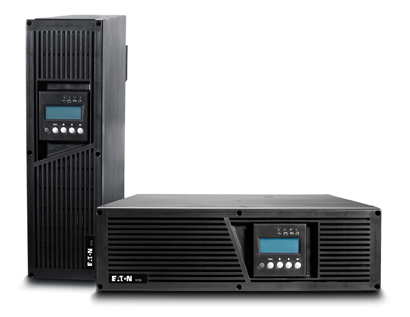

Eaton 9135 Tower/Rackmount
• True online double conversion for maximum reliability • Two-in-one form factor for rack (3U) or tower use • Exclusive ABM^® technology optimizes battery life and recharge time • Optional EBMs to prolong runtimes • Individual load segment control • Ideal protection for networks, servers, mission critical equipment	5000-6000VA
Eaton 9140
• Online double conversion for maximum reliability • 6U Rackmount form factor • Exclusive ABM^® technology optimizes battery life and recharge time • 3U EBM units (4 supported total) extend runtime up to 45 minutes • Lightweight, user-replaceable and hot-swappable components • Includes LanSafe^® software for remote management through USB port • X-Slot^® Card optional for integrated management via network • Ideal protection for high density rack environments • Galvanic isolation separates input from output, filtering noise & surges • Some configurations also available as 3-phase input	7.5 -10kVA
Eaton 9155
• Exclusive ABM^® technology optimizes battery life and recharge time • Reduces total harmonic distortion (THM) to less than 5% • Provides more real wattage in less space with 0.9 power factor • Eaton Hotsync^® allows paralleling of multiple modules for capacity and redundancy	8-15kVA

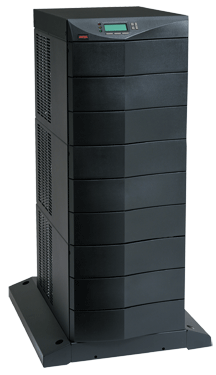

Eaton 9170+
• True online double conversion • Modular, scalable design allows for future growth • Battery and power modules can be added to open slots •N + X power and logic redundancy eliminates single point of failure • Optional EBMs can prolong runtime • Ideal Protection for mid-range computers, critical servers, telco equipment, generator sites and ISP applications	3-18kVA
